External Hinged Y-Pieces
External Hinged Y-Piece
One-piece asymmetrical three-junction fittings allow a variety of conduit variations. These fittings are designed to snap together over all types of slit and unslit conduit, thus maintaining maximum conduit bore.
| Material | Polyamide (Nylon) PA 66 – Heat and UV stabilised |
|---|---|
| IP Rating | IP40 |
| Static Temperature | -40°C to +120°C |
| Dynamic Temperature | -5°C +120°C |

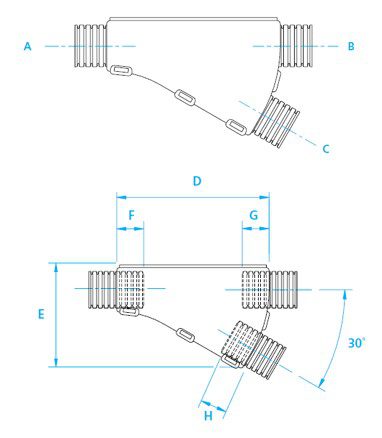

| TTS Part Number | Size | Inner / Outer Diameter | Nominal Conduit Size | Thread Size | A | B | C | D | E | Unit | Pack Size | Stock | Lead Time (Days) | Price Excl. Vat | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPS080808 | 0 / 0 | 8mm | 0 | 8mm | 8mm | 8mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS080812 | 0 / 0 | 8mm | 0 | 8mm | 8mm | 12mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS081208 | 0 / 0 | 8mm | 0 | 8mm | 12mm | 8mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS101010 | 0 / 0 | 10mm | 0 | 10mm | 10mm | 10mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS120808 | 0 / 0 | 12mm | 0 | 12mm | 8mm | 8mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS120810 | 0 / 0 | 12mm | 0 | 12mm | 8mm | 10mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS121010 | 0 / 0 | 12mm | 0 | 12mm | 10mm | 10mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS121208 | 0 / 0 | 12mm | 0 | 12mm | 12mm | 8mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS121210 | 0 / 0 | 12mm | 0 | 12mm | 12mm | 10mm | 55mm | 37mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS121212 | 0 / 0 | 12mm | 0 | 12mm | 12mm | 12mm | 55mm | 37mm | Each | 1 | 0 | 14 | R38.13 | ||
| TYPS160812 | 0 / 0 | 16mm | 0 | 16mm | 8mm | 12mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161010 | 0 / 0 | 16mm | 0 | 16mm | 10mm | 10mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161208 | 0 / 0 | 16mm | 0 | 16mm | 12mm | 8mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161210 | 0 / 0 | 16mm | 0 | 16mm | 12mm | 10mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161212 | 0 / 0 | 16mm | 0 | 16mm | 12mm | 12mm | 55mm | 40mm | Each | 1 | 0 | 14 | R38.13 | ||
| TYPS161608 | 0 / 0 | 16mm | 0 | 16mm | 16mm | 8mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161610 | 0 / 0 | 16mm | 0 | 16mm | 16mm | 10mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS161612 | 0 / 0 | 16mm | 0 | 16mm | 16mm | 12mm | 55mm | 40mm | Each | 1 | 0 | 14 | R39.5 | ||
| TYPS200808 | 0 / 0 | 20mm | 0 | 20mm | 8mm | 8mm | 43mm | 37mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS201208 | 0 / 0 | 20mm | 0 | 20mm | 12mm | 8mm | 43mm | 37mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS201210 | 0 / 0 | 20mm | 0 | 20mm | 12mm | 10mm | 43mm | 37mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS201212 | 0 / 0 | 20mm | 0 | 20mm | 12mm | 12mm | 43mm | 37mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS201608 | 0 / 0 | 20mm | 0 | 20mm | 16mm | 8mm | 48mm | 40mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS201612 | 0 / 0 | 20mm | 0 | 20mm | 16mm | 12mm | 48mm | 40mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS201616 | 0 / 0 | 20mm | 0 | 20mm | 16mm | 16mm | 64mm | 48mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS202008 | 0 / 0 | 20mm | 0 | 20mm | 20mm | 8mm | 56mm | 45mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS202010 | 0 / 0 | 20mm | 0 | 20mm | 20mm | 10mm | 58mm | 45mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS202012 | 0 / 0 | 20mm | 0 | 20mm | 20mm | 12mm | 58mm | 45mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS202016 | 0 / 0 | 20mm | 0 | 20mm | 20mm | 16mm | 64mm | 28mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252012 | 0 / 0 | 25mm | 0 | 25mm | 20mm | 12mm | 54mm | 49mm | Each | 1 | 0 | 21 | P.O.R | ||
| TYPS252016 | 0 / 0 | 25mm | 0 | 25mm | 20mm | 16mm | 54mm | 49mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252020 | 0 / 0 | 25mm | 0 | 25mm | 20mm | 20mm | 54mm | 49mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252508 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 8mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252510 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 10mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252512 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 12mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252516 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 16mm | 67mm | 56mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS252520 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 20mm | 77mm | 60mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS252525 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 25mm | 91mm | 67mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282012 | 0 / 0 | 28mm | 0 | 28mm | 20mm | 12mm | 54mm | 49mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282016 | 0 / 0 | 28mm | 0 | 28mm | 20mm | 16mm | 54mm | 49mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282020 | 0 / 0 | 28mm | 0 | 28mm | 20mm | 20mm | 54mm | 49mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS282512 | 0 / 0 | 28mm | 0 | 28mm | 25mm | 12mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282516 | 0 / 0 | 28mm | 0 | 28mm | 25mm | 16mm | 67mm | 56mm | Each | 1 | 0 | 21 | P.O.R | ||
| TYPS282520 | 0 / 0 | 28mm | 0 | 28mm | 25mm | 20mm | 77mm | 60mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS282525 | 0 / 0 | 28mm | 0 | 28mm | 25mm | 25mm | 91mm | 67mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS282808 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 8mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282812 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 12mm | 67mm | 56mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282816 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 16mm | 67mm | 56mm | Each | 1 | 0 | 14 | R41.71 | ||
| TYPS282820 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 20mm | 77mm | 60mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282825 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 25mm | 91mm | 67mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS282828 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 28mm | 91mm | 67mm | Each | 1 | 0 | 14 | R42.9 | ||
| TYPS322032 | 0 / 0 | 32mm | 0 | 32mm | 20mm | 32mm | 100mm | 77mm | Each | 1 | 0 | 21 | P.O.R | ||
| TYPS322516 | 0 / 0 | 32mm | 0 | 32mm | 25mm | 16mm | 100mm | 75mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS322520 | 0 / 0 | 32mm | 0 | 32mm | 25mm | 20mm | 100mm | 76mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS322525 | 0 / 0 | 32mm | 0 | 32mm | 25mm | 25mm | 100mm | 79mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS322532 | 0 / 0 | 32mm | 0 | 32mm | 25mm | 32mm | 100mm | 82mm | Each | 1 | 0 | 14 | R66.47 | ||
| TYPS323216 | 0 / 0 | 32mm | 0 | 32mm | 32mm | 16mm | 100mm | 75mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS323220 | 0 / 0 | 32mm | 0 | 32mm | 32mm | 20mm | 100mm | 76mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS323225 | 0 / 0 | 32mm | 0 | 32mm | 32mm | 25mm | 100mm | 79mm | Each | 1 | 0 | 14 | R68.5 | ||
| TYPS323232 | 0 / 0 | 32mm | 0 | 32mm | 32mm | 32mm | 100mm | 82mm | Each | 1 | 0 | 14 | R66.47 |
