External Hinged Elbows
External Hinged Elbows
One-piece joiner and elbow hinged fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit conduit, thus maintaining maximum conduit bore.
Can be used as a reducer as well as an enlarger.
| Material | Polyamide (Nylon) PA 66 – Heat and UV stabilised |
|---|---|
| Operating Temperature | -40°C to +120°C |
| IP Rating | IP40 |

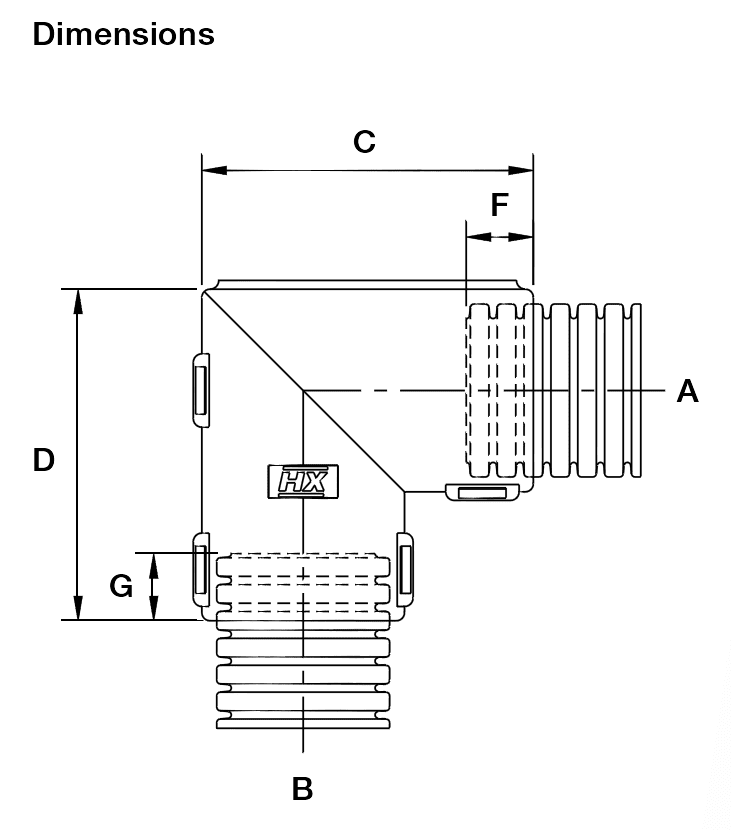

| TTS Part Number | Size | Inner / Outer Diameter | Nominal Conduit Size | Thread Size | A | B | C | D | E | Unit | Pack Size | Stock | Lead Time (Days) | Price Excl. Vat | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TEPS0820 | 0 / 0 | 8mm | 0 | 8mm | 20mm | 41mm | 41mm | 25mm | Each | 1 | 0 | 21 | P.O.R | ||
| TEPS12S12 | 0 / 0 | 12mm | 0 | 12mm | 12mm | 38mm | 29mm | 20mm | Each | 1 | 0 | 21 | P.O.R | ||
| TEPS1608 | 0 / 0 | 16mm | 0 | 16mm | 8mm | 34mm | 34mm | 21mm | Each | 1 | 0 | 21 | R31.5 | ||
| TEPS1612 | 0 / 0 | 16mm | 0 | 16mm | 12mm | 34mm | 34mm | 21mm | Each | 1 | 0 | 14 | R31.5 | ||
| TEPS1616 | 0 / 0 | 16mm | 0 | 16mm | 16mm | 34mm | 34mm | 21mm | Each | 1 | 0 | 14 | R31.5 | ||
| TEPS2012 | 0 / 0 | 20mm | 0 | 20mm | 12mm | 41mm | 41mm | 26mm | Each | 1 | 0 | 21 | P.O.R | ||
| TEPS2016 | 0 / 0 | 20mm | 0 | 20mm | 16mm | 41mm | 41mm | 26mm | Each | 1 | 0 | 14 | R67.85 | ||
| TEPS2020 | 0 / 0 | 20mm | 0 | 20mm | 20mm | 41mm | 41mm | 26mm | Each | 1 | 0 | 14 | R67.85 | ||
| TEPS2520 | 0 / 0 | 25mm | 0 | 25mm | 20mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 14 | R73.6 | ||
| TEPS2525 | 0 / 0 | 25mm | 0 | 25mm | 25mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 14 | R73.6 | ||
| TEPS2812 | 0 / 0 | 28mm | 0 | 28mm | 12mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 21 | R73.6 | ||
| TEPS2816 | 0 / 0 | 28mm | 0 | 28mm | 16mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 21 | R73.6 | ||
| TEPS2820 | 0 / 0 | 28mm | 0 | 28mm | 20mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 21 | R73.6 | ||
| TEPS2825 | 0 / 0 | 28mm | 0 | 28mm | 25mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 21 | R73.6 | ||
| TEPS2828 | 0 / 0 | 28mm | 0 | 28mm | 28mm | 48mm | 48mm | 33mm | Each | 1 | 0 | 14 | R73.6 | ||
| TEPS28-70-25 | 0 / 0 | 28mm | 0 | 28mm | 70mm | 51mm | 37mm | 16mm | Each | 1 | 0 | 21 | P.O.R |
