NC-S – Standard Weight Slit – General Purpose Conduit
NC-S – Standard Weight Slit – General Purpose Conduit
Flexible standard weight nylon (PA6) conduit is a general-purpose conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life.

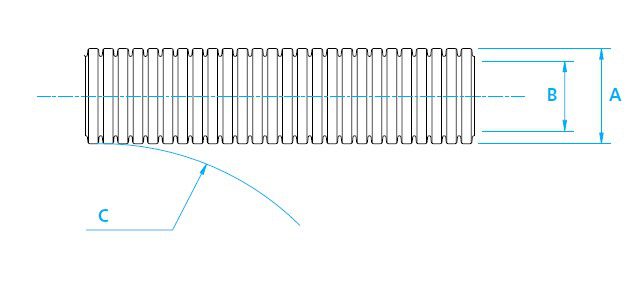

A = Size [mm]
A = Size [mm]
| Material | Polyamide 6 |
|---|---|
| IP Rating | IP40/67/68 |
| Static Temperature | -40°C to +120°C |
| Dynamic Temperature | -05°C to +120°C |
| Flexibility | High Flexibility |
| Fatigue Life | High Fatigue Life |
| Fire Performance | Self Extinguishing / Low Smoke Toxicity / Halogen Free |
| Colours Available | Black / Grey / Red / Orange |
| UV Resistance | High / Medium |
